MAIN FEATURES

Exceptional Coverage Support 220 car makes globally

THINKTOOL Master X supports 220 car makes globally, 12V&24V passenger, commercial, hybrid vehicles, heavy duty trucks, and more.

THINKTOOL MAX adopts the latest DoIP and CAN FD protocols as well as J2534, D-PDU, DoIP, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP2.0), ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, kwp128, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) protocols.

High-End Programming Capabilities

THINKTOOL Master X supports programming function for Audi, BMW, FORD, LAND ROVER, Mazda, Mercedes-Benz, Nissan, Porsche, Seat, SGM, Skoda, Subaru, VW and more.

OE Level Wireless Intelligent Diagnostic Functions

THINKTOOL Master X introduces the most affordable and complete functions, such as full vehicle scan, read and clear fault codes, live data stream, actuation tests, special functions, 35 maintenance reset functions and more.

35 different maintenance reset functions

More efficient than ever

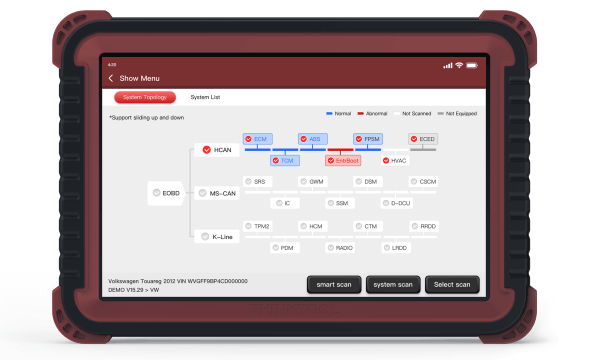

THINKTOOL Master X intelligent topology module mapping of CAN BUS CHECK with color coded module statues for a faster results.

ADAS CALIBRATION SERVICES

NINE FUNCTIONAL MODULES

Support Nine Functional Modules

Remarks: Printer is included as standard configuration. Others need to be purchased separately.

Printer

Support diagnostic report print service

Worklight

Offer Lighting assistant service

Thermal Imager

Scan and capture vehicle temperature

Scope Box

Check vehicle circuit related failure

Video scope

Allow technicians to check faults in narrow and dark space

Battery tester

Support diagnostic report print service

T-Wand 200

Full TPMS service including activate, programming, relearns function.

Immobilizer programmer Thinkcar PROG

Make immobilizer matching easier

THINKTOOL Trolley

Multi-functional tool trolley with 5 layers design for placement tools/equipment orderly

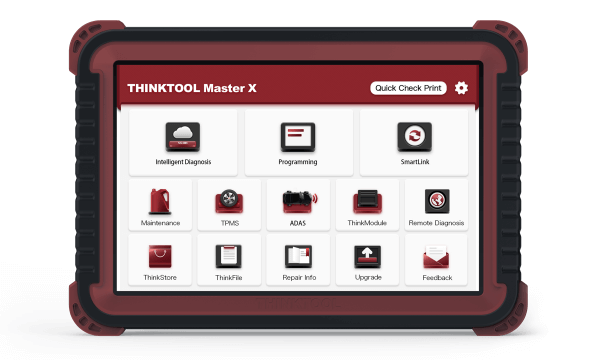

SUPERIOR HARDWARE

8 MEGAPIXEL

CPU 2.0 GHZ OCTA-CORE

BRIGHTNESS UP TO 500 NIT

4GB RAM

INCHES

128GB STORAGE

REMOTE TECHNICAL SUPPORT VIA TEAMVIEWER

THINKTOOL Master X TeamViewer provides direct technical support to remotely access any Master tools in the field. Helping technicians fix problems quickly and accurately with better customer support.

THINKTOOL Master X offers a two-year full passenger software with free updates. The commercial software need to be purchased seperately.

Specifications

Camera	8MP Rear
Battery	6000mAh/7.6V
ROM/RAM	128G/4G
Display Screen	10-Inch/TFT(IPS)
Connection Mode	BT5.0/WIFI(WLAN802.11b/g/n)
Work Temperature	32 ℉~122℉
Operationg System	Android 10.0
Storage Temperature	-4℉~140℉

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then "firmware repair" icon to upgrade the firmware..

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.
