MAIN FEATURES

Programming

More Powerful than Ever

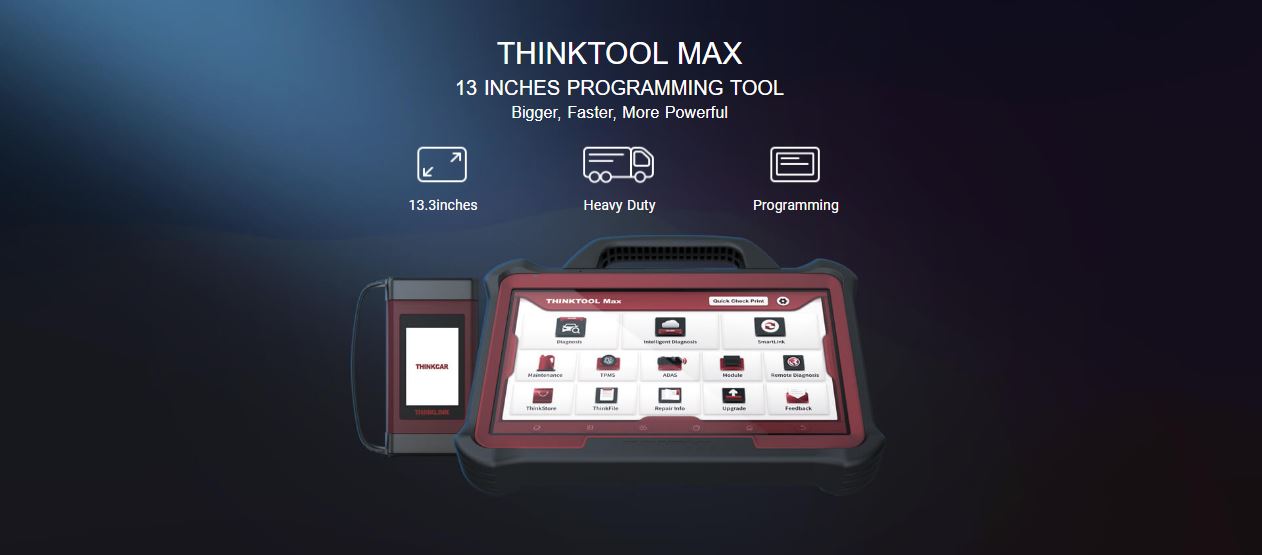

THINKTOOL MAX, the most powerful modular programming diagnostic tool, introduces intelligent programming function available for Audi, BMW, Land Rover, Mazda, Mercedes-Benz, Nissan, Porsche, Seat, SGM, Skoda, Subaru, VW and more.

MAIN FEATURES

Support 12V and 24V vehicles

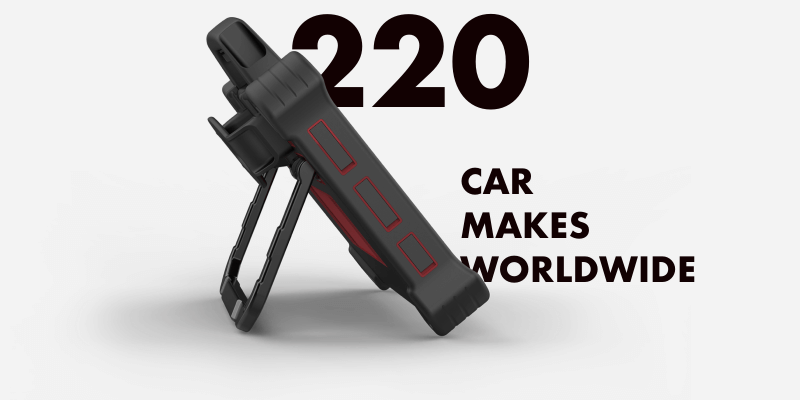

THINKTOOL MAX supports 220 car makes worldwide, both 12V & 24V passenger, commercial, hybrid vehicles, heavy duty trucks, etc

Passenger cars

Commercial cars

Hybrid cars

Heavy duties

MAIN FEATURES

Support 12V and 24V vehicles

THINKTOOL MAX supports 220 car makes worldwide, both 12V & 24V passenger, commercial, hybrid vehicles, heavy duty trucks, etc

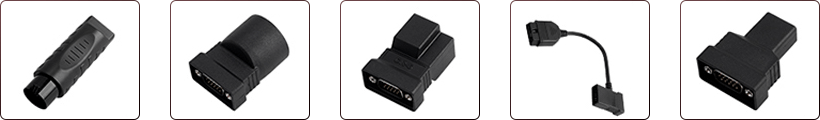

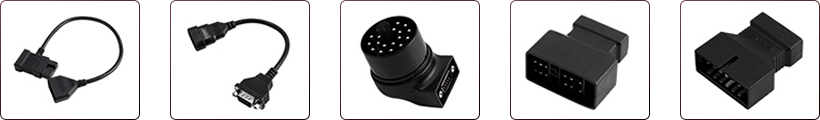

THINKTOOL MAX is equipped with a standard 16-PIN diagnostic box together with OBDI connector

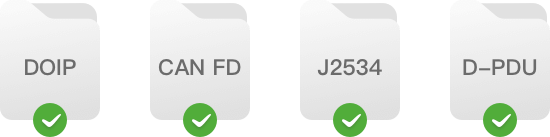

THINKTOOL MAX adopts the latest DoIP and CAN FD protocols as well as J2534, D-PDU, DoIP, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP2.0), ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, kwp128, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) protocols.

Advanced Diagnostic Functions

Providing OE Level Diagnosis

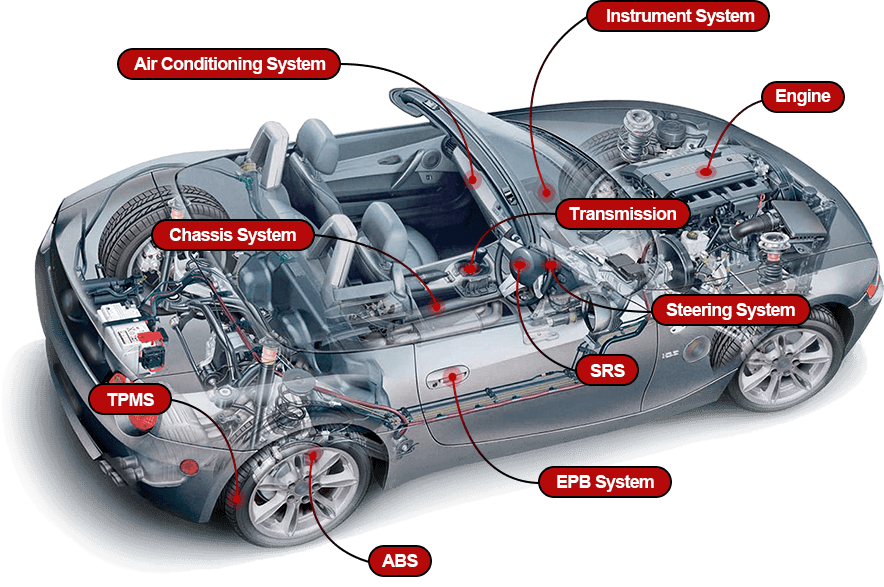

THINKTOOL MAX supports full vehicle diagnostics, read&clear codes, live data stream, actuation test, special functions, 35 different maintenance reset functions and more.

Passenger cars

35 different maintenance reset functions

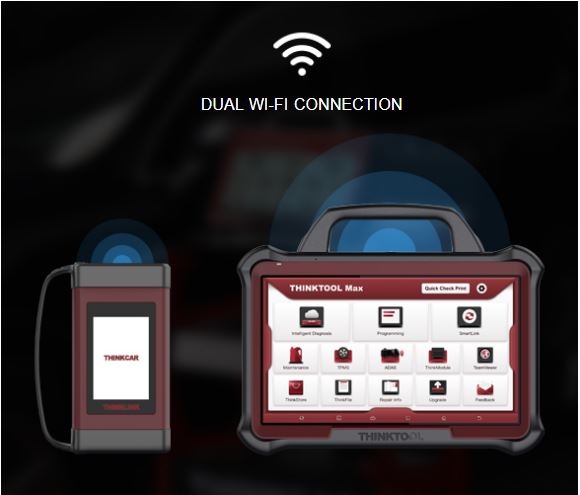

Dual range Wi-Fi Connection

Faster than Ever

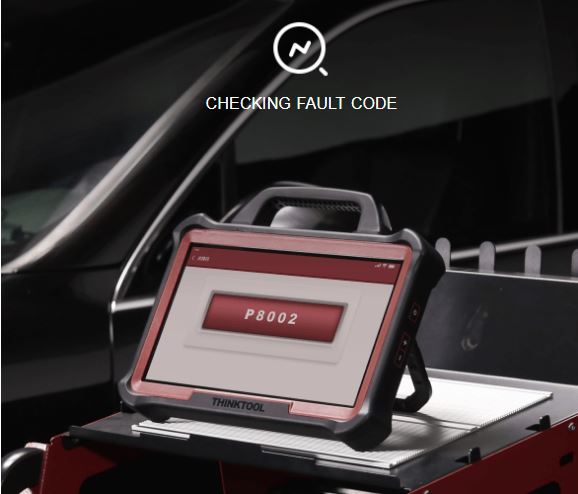

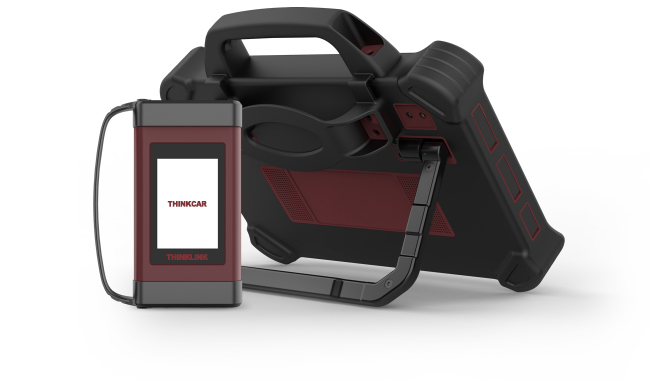

THINKTOOL MAX supports dual range Wi-Fi connection. The tablet communicates with the diagnostic box through Wi-Fi, allowing technicians to quickly operate diagnostics, checking fault code and other functions.

Specifications

Camera	13.0MP Rear
Battery	18600mAh/3.7V
Ernst Handel	Roland Mendel
Island Trading	Helen Bennett
Laughing Bacchus Winecellars	Yoshi Tannamuri
Magazzini Alimentari Riuniti	Giovanni Rovelli

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then "firmware repair" icon to upgrade the firmware..

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.
